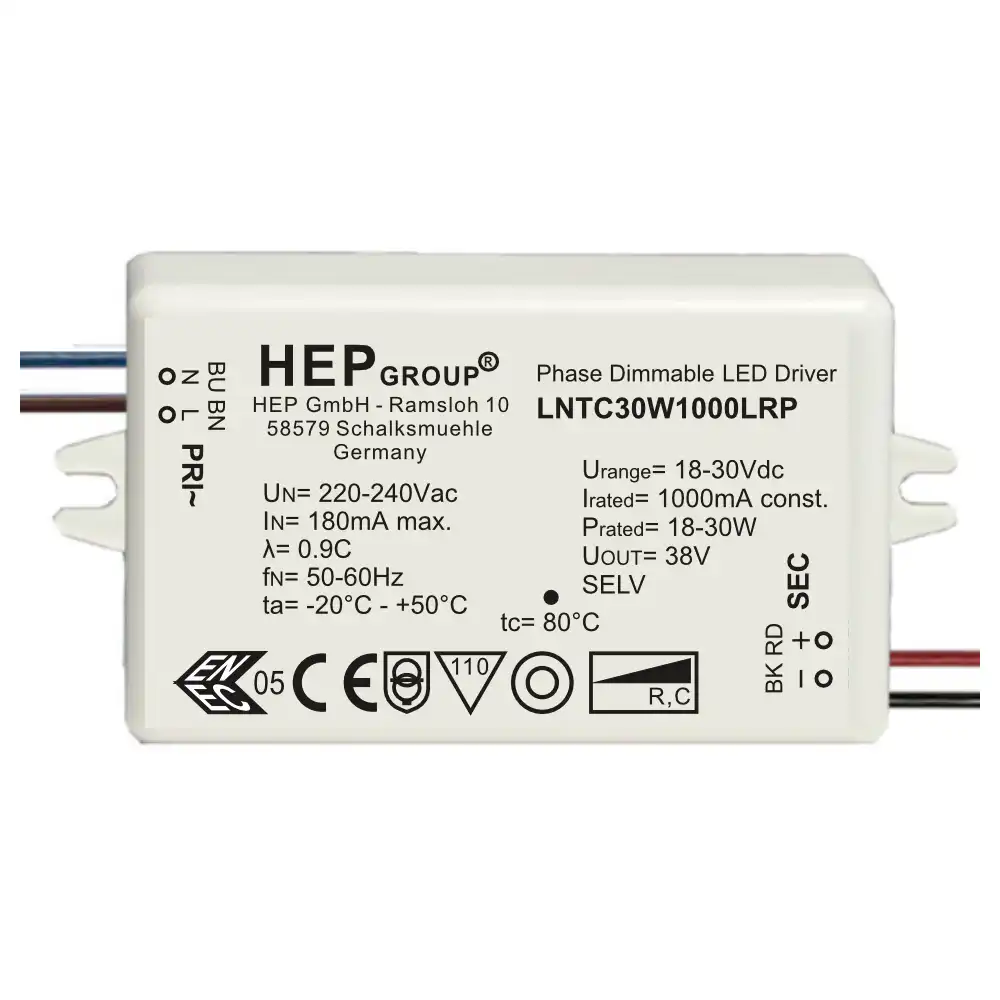

LNTC 30 W 400-1000 mA Trailing edge
Produktbeschreibung
Phase dimmable LED Driver for constant current LED
DC Output with constant current of 400, 450, 500, 550, 600, 700, 800, 900 or 1000 mA
Average service life 50,000 h
Failure rate 0.20 % / 1000 h
Operating ambient temperature -20°C – +50°C
Sicherheit
Short– & open circuit proof
Auto. overheat cut off
Overload protection
SELV
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| LNTC30W400LRP | 36–60 Vdc | 400 mA | 14.4–24 W | 0.94C−0.97 | ± 5 % |
| LNTC30W450LRP | 36–60 Vdc | 450 mA | 16.2–27 W | 0.94C−0.97 | ± 5 % |
| LNTC30W500LRP | 36–60 Vdc | 500 mA | 18–30 W | 0.94C−0.97 | ± 5 % |
| LNTC30W550LRP | 25–42 Vdc | 550 mA | 13.8–23.1 W | 0.94C−0.97 | ± 5 % |
| LNTC30W600LRP | 25–42 Vdc | 600 mA | 15–25.2 W | 0.94C−0.97 | ± 5 % |
| LNTC30W700LRP | 25–42 Vdc | 700 mA | 17.5–29.4 W | 0.94C−0.97 | ± 5 % |
| LNTC30W900LRP | 18–30 Vdc | 900 mA | 16.2–27 W | 0.94C−0.97 | ± 5 % |
| LNTC30W1000LRP | 18–30 Vdc | 1000 mA | 18–30 W | 0.94C−0.97 | ± 5 % |
| LNTC30W800LRP | 18−30 Vdc | 800 mA | 14.4−24 W | 0.94C−0.97 | ± 5 % |
