LNTC 20 W 250-700 mA Trailing edge
Produktbeschreibung
Phase dimmable LED Driver for constant current LED
DC Output with constant current of 250, 300, 350, 400, 450, 500, 550, 600 or 700 mA
Average service life 50,000 h
Failure rate 0.20 % / 1000 h
Operating ambient temperature -20°C – +50°C
Sicherheit
Short– & open circuit proof
Auto. overheat cut off
Overload protection
SELV
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| LNTC20W250LRP | 34–57 Vdc | 250 mA | 8.5–14.2 W | 0.9C−0.97 | ± 5 % |
| LNTC20W300LRP | 34–57 Vdc | 300 mA | 10.2–17.1 W | 0.9C−0.97 | ± 5 % |

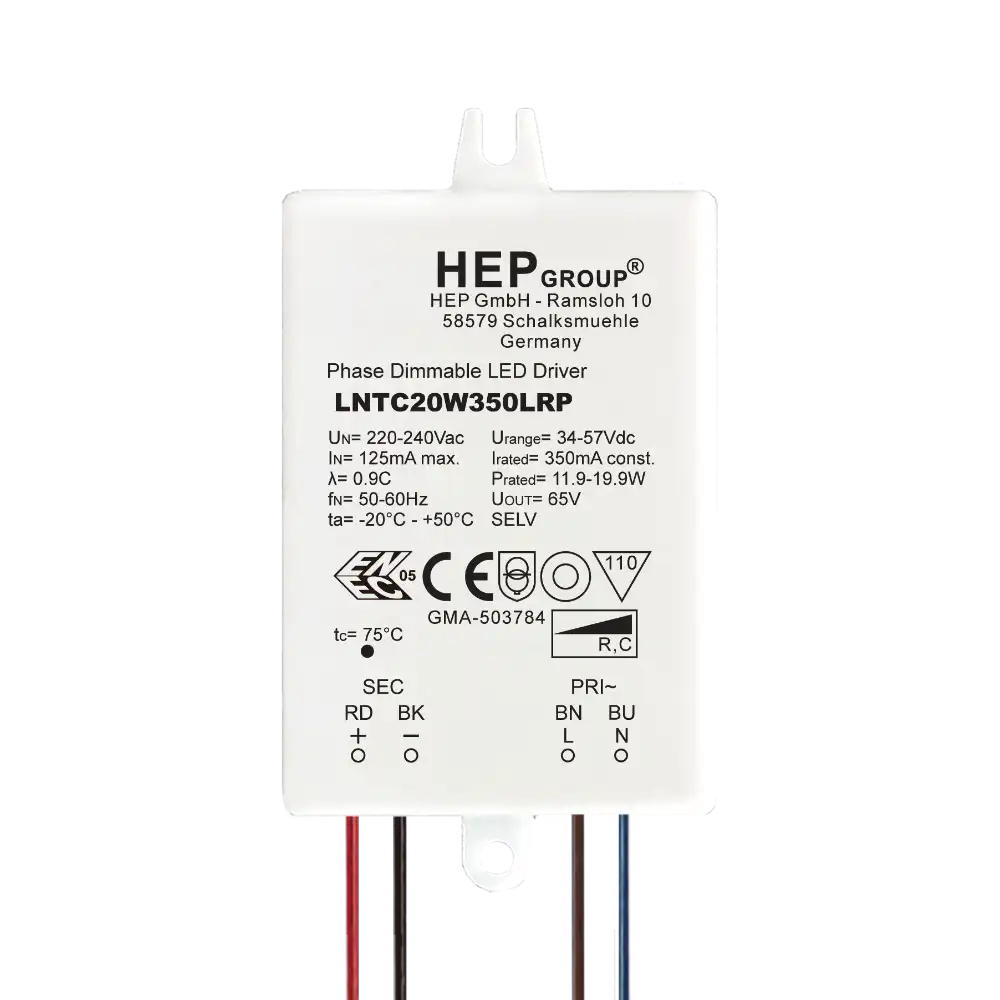

| LNTC20W350LRP | 34–57 Vdc | 350 mA | 11.9–19.9 W | 0.9C−0.97 | ± 5 % |
| LNTC20W400LRP | 22–41 Vdc | 400 mA | 8.8–16.4 W | 0.9C−0.97 | ± 5 % |
| LNTC20W500LRP | 22–41 Vdc | 500 mA | 11–20.5 W | 0.9C−0.97 | ± 5 % |
| LNTC20W600LRP | 17–29 Vdc | 600 mA | 10.2–17.4 W | 0.9C−0.97 | ± 5 % |
| LNTC20W700LRP | 17–29 Vdc | 700 mA | 11.9–20.3 W | 0.9C−0.97 | ± 5 % |
| LNTC20W550LRP | 17−29 Vdc | 550 mA | 9.4−15.9 W | 0.9C−0.97 | ± 5 % |
