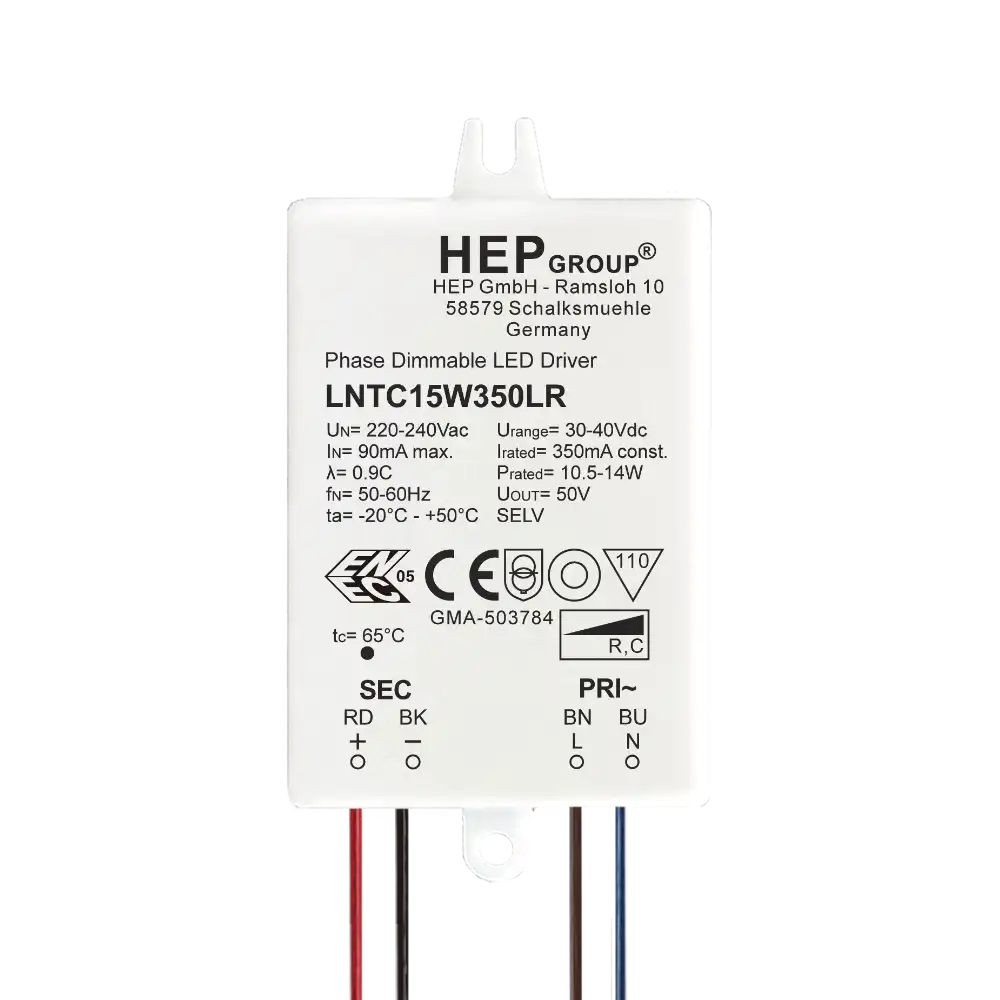

LNTC 15 W 180-350 mA Trailing edge

Produktbeschreibung

Phase dimmable LED Driver for constant current LED
DC Output with constant current of 180, 200, 250, 300 or 350 mA
Average service life 50,000 h
Failure rate 0.20 % / 1000 h
Operating ambient temperature -20°C – +50°C

Sicherheit

Short– & open circuit proof Auto. overheat cut off Overload protection SELV
ProductUrangeIratedPratedPfRipple
LNTC15W180LR30–40 Vdc180 mA5.4–7.2 W0.8−0.9C± 5 %
LNTC15W200LR30–40 Vdc200 mA6–8 W0.86C−0.95± 5 %
LNTC15W250LR30–40 Vdc250 mA7.5–10 W0.86C−0.95± 5 %
LNTC15W300LR30–40 Vdc300 mA9–12 W0.9C−0.95± 5 %
LNTC15W350LR30–40 Vdc350 mA10.5–14 W0.9C−0.95± 5 %
