LNTC 10 W 200-700 mA Trailing edge
Produktbeschreibung
Phase dimmable LED Driver for constant current LED
DC Output with constant current of 200, 300, 350, 400, 450, 500, 550, 600 or 700 mA
Average service life 50,000 h
Failure rate 0.20 % / 1000 h
Operating ambient temperature -20°C – +50°C
Sicherheit
Short– & open circuit proof
Auto. overheat cut off
Overload protection
SELV
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| LNTC10W300LR | 16–29 Vdc | 300 mA | 4.8–8.7 W | 0.93C−0.97 | ± 5 % |
| LNTC10W350LR | 16–29 Vdc | 350 mA | 5.6–10.1 W | 0.93C−0.97 | ± 5 % |
| LNTC10W400LR | 11–20 Vdc | 400 mA | 4.4–8 W | 0.93C−0.97 | ± 5 % |
| LNTC10W500LR | 11–20 Vdc | 500 mA | 5.5–10 W | 0.93C−0.97 | ± 5 % |
| LNTC10W200LR | 16−29 Vdc | 200 mA | 3.2−5.8 W | 0.93C−0.97 | ± 5 % |
| LNTC10W450LR | 11−20 Vdc | 450 mA | 5−9 W | 0.93C−0.97 | ± 5 % |
| LNTC10W550LR | 8−14 Vdc | 550 mA | 4.4−7.7 W | 0.93C−0.97 | ± 5 % |

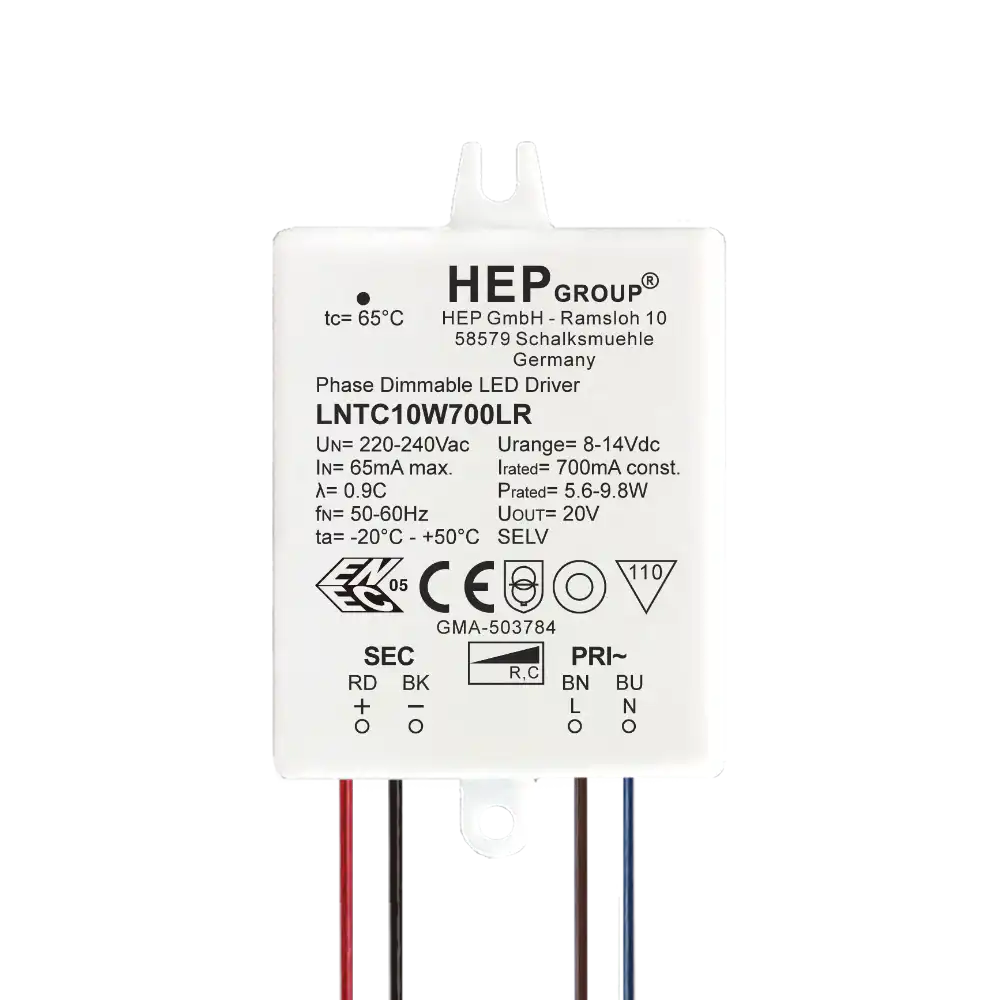

| LNTC10W700LR | 8−14 Vdc | 700 mA | 5.6−9.8 W | 0.93C−0.97 | ± 5 % |
| LNTC10W600LR | 8−14 Vdc | 600 mA | 4.8−8.4 W | 0.93C−0.97 | ± 5 % |
