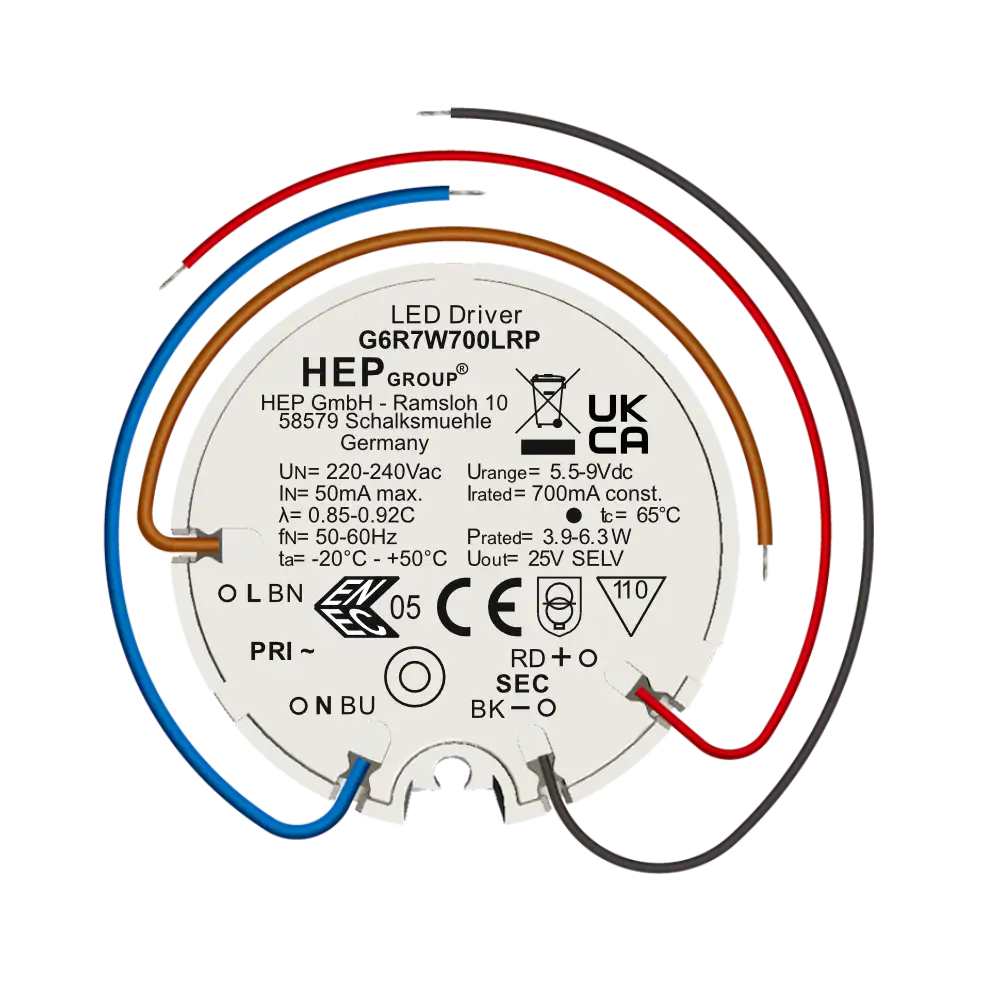

G6R 7 W 150-700 mA

Produktbeschreibung

DC Output with constant current of 150, 300, 350, 500 or 700 mA
Ripple current ± 5 %
Built-in type with double or reinforced insulation
Single wires with tinned wire ends
Compact round case
Average lifetime 50.000 h
5 Years guarantee

Sicherheit

Short– & open circuit proof Auto. overheat regulation or cut off Overload protection SELV
ProductUrangeIratedPratedPfRipple
G6R7W150LRP32−42 Vdc150 mA4.8−6.3 W0.85C−0.92C± 5 %
G6R7W300LRP13−22 Vdc300 mA3.9−6.6 W0.85C−0.92C± 5 %
G6R7W350LRP13−22 Vdc350 mA4.6−7.7 W0.85C−0.92C± 5 %
G6R7W500LRP6−13 Vdc500 mA3−6.5 W0.85C−0.92C± 5 %
G6R7W700LRP5.5−9 Vdc700 mA3.9−6.3 W0.85C−0.92C± 5 %
