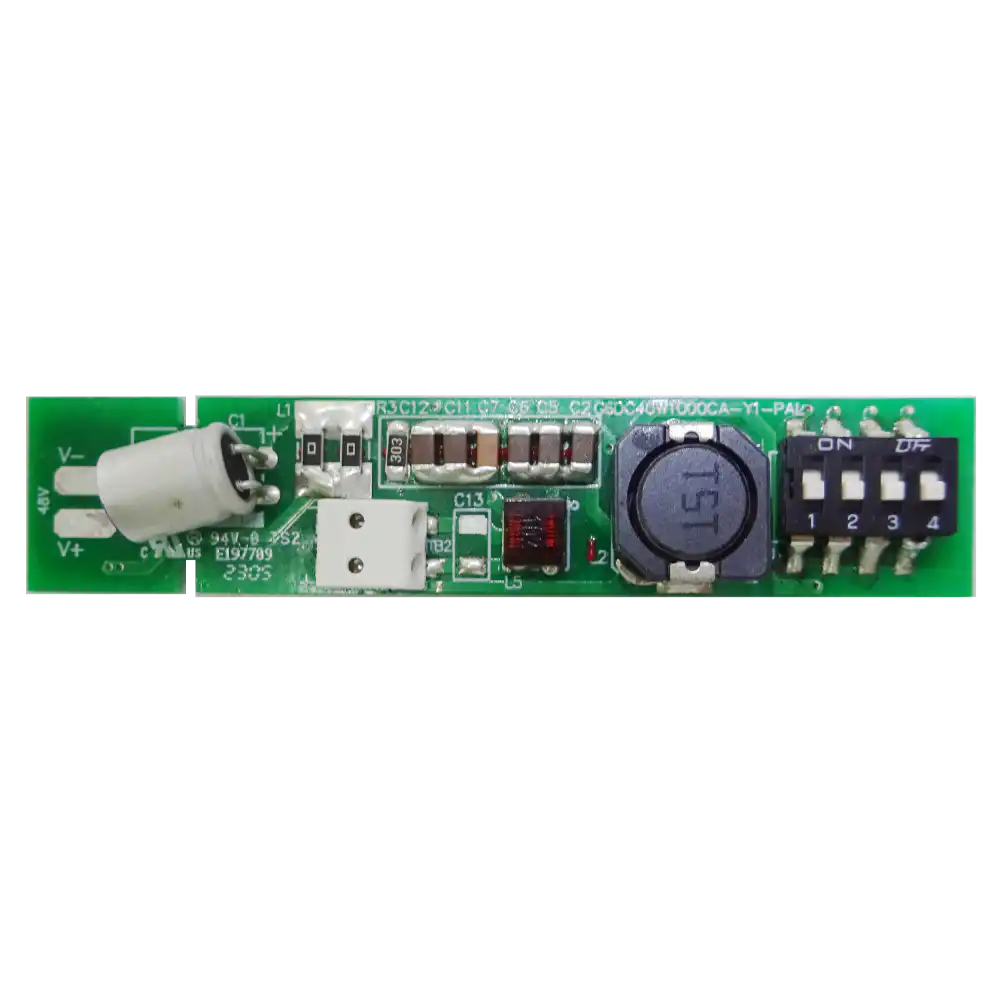

G6DC 36 W 150-900 mA DIP-Switch

Produktbeschreibung

LV-DC supplied LED Driver for constant current LED
Adjustable output current from 150 to 900 mA in steps of 50 mA via DIP-Switch
Operating ambient temperature -20°C – +35°C
Average service life 50.000 h
5 Years guarantee

Sicherheit

Short– & open circuit proof
Auto. overheat regulation or cut off
Overload protection

ProductUrangeIratedPratedPfRipple
G6DC36W900CA3−40 Vdc150 mA0.4−6 W
200 mA0.6−8 W
250 mA0.7−10 W
300 mA0.9−12 W
350 mA1−14 W
400 mA1.2−16 W
450 mA1.3−18 W
500 mA1.5−20 W
550 mA1.6−22 W
600 mA1.8−24 W
650 mA1.9−26 W
700 mA2.1−28 W
750 mA2.2−30 W
800 mA2.4−32 W
850 mA2.5−34 W
900 mA2.7−36 W
