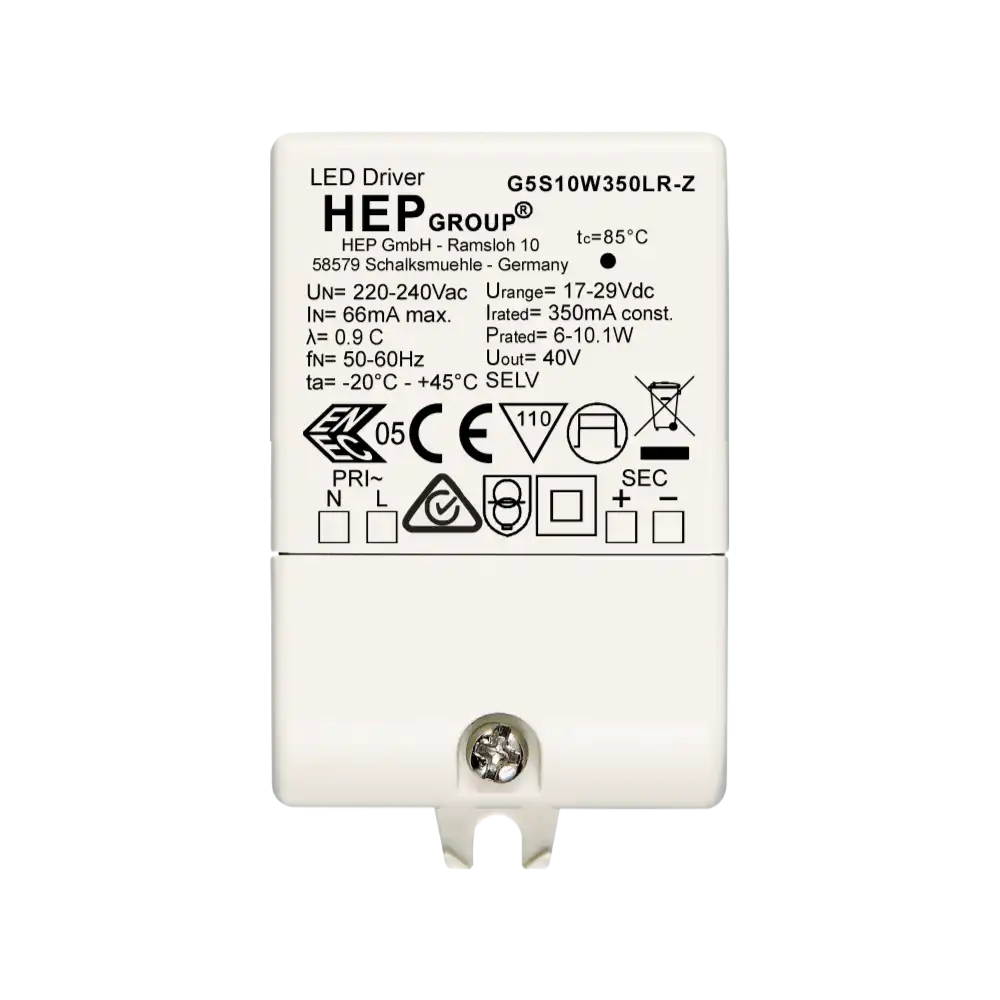

G5S 10 W 200-700 mA (independent)

Produktbeschreibung

DC Output with constant current of 200, 250, 350, 450, 500 or 700 mA
Ripple current ± 5 %
Compact case with strain reliefs for independent use
Rectangular shape
Suitable for Class II luminaires
Average lifetime 50.000 h
5 Years warranty

Sicherheit

Short– & open circuit proof Auto. overheat cut off Overload protection SELV
ProductUrangeIratedPratedPfRipple
G5S10W200LR-Z29−42 Vdc200 mA5.8−8.4 W0.78−0.92C± 5 %
G5S10W250LR-Z26−40 Vdc250 mA6.5−10 W0.85−0.94C± 5 %
G5S10W350LR-Z17−29 Vdc350 mA6−10.1 W0.85−0.94C± 5 %
G5S10W450LR-Z13−20 Vdc450 mA5.9−9 W0.85−0.94C± 5 %
G5S10W500LR-Z13−20 Vdc500 mA6.5−10 W0.85−0.94C± 5 %
G5S10W700LR-Z8.6−14.5 Vdc700 mA6.1−10.1 W0.85−0.94C± 5 %
