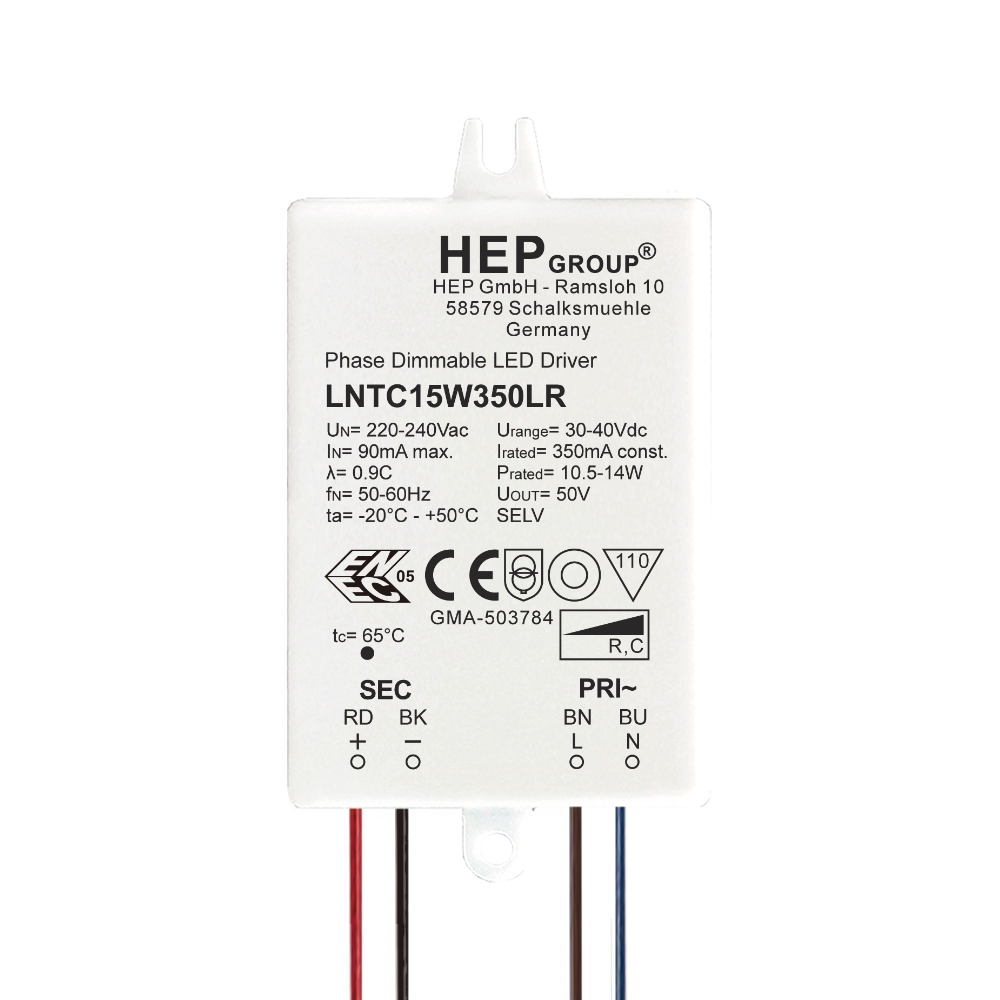

LNTC 15 W 180-350 mA Trailing edge
Product Description
Phase dimmable LED Driver for constant current LED
DC Output with constant current of 180, 200, 250, 300 or 350 mA
Average service life 50,000 h
Failure rate 0.20 % / 1000 h
Operating ambient temperature -20°C – +50°C
Protection
Short– & open circuit proof
Auto. overheat cut off
Overload protection
SELV
| Product | Urange | Irated | Prated | Pf | Ripple |
|---|---|---|---|---|---|
| LNTC15W180LR | 30–40 Vdc | 180 mA | 5.4–7.2 W | 0.8−0.9C | ± 5 % |
| LNTC15W200LR | 30–40 Vdc | 200 mA | 6–8 W | 0.86C−0.95 | ± 5 % |
| LNTC15W250LR | 30–40 Vdc | 250 mA | 7.5–10 W | 0.86C−0.95 | ± 5 % |
| LNTC15W300LR | 30–40 Vdc | 300 mA | 9–12 W | 0.9C−0.95 | ± 5 % |
| LNTC15W350LR | 30–40 Vdc | 350 mA | 10.5–14 W | 0.9C−0.95 | ± 5 % |
